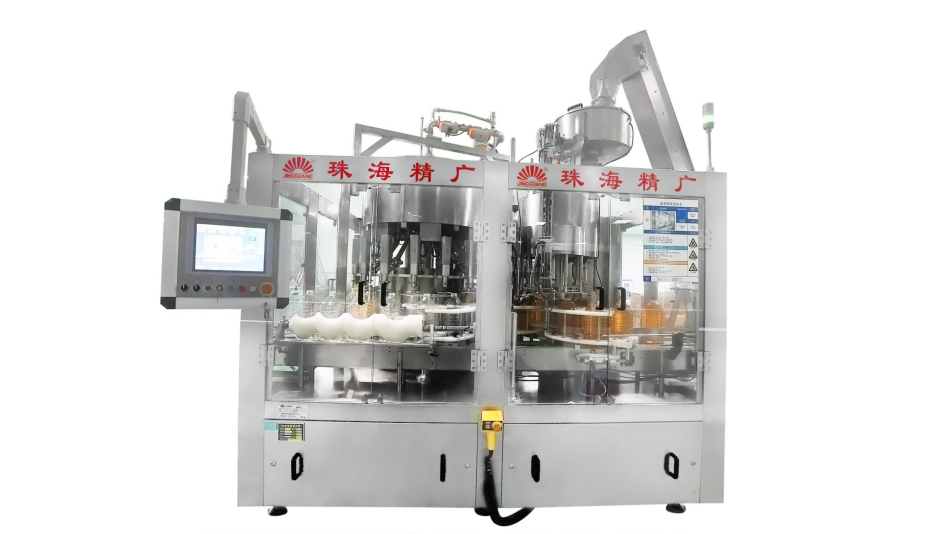

Jingguang rotary filling machine is divided into two stages for filling. The filling is free of splash, the oil collection is free of drip, and the nozzle is equipped with an anti drip system. Each filling valve is equipped with a small piston driven by an independent small cylinder. When filling is completed, the small cylinder drives the small piston to retract to generate vacuum, and the residual liquid on the filling nozzle is sucked into the small piston cylinder for temporary storage. When the filling valve is opened next time, the small cylinder drives the small piston to extend, and the residual liquid is put back into the bottle.
At the same time, there is a void hole in the middle of the weighing platform. Even if the machine is shut down for a long time, the residual liquid from the filling nozzle will also pass through the void hole when dripping, so as to prevent the bottle bottom from being polluted. When the filling head detects filling deviation or bottle squeezing, the weighing sensor detects the abnormality that the weight increase speed does not match the flow rate, and the filling machine alarms and shuts down to prevent the broken bottle from flowing to the next process.
Equipment advantages
1. The oil storage box is made of high-quality 316 stainless steel. The internal and external surfaces of the box are sanitary polished, and the internal surfaces are polished with high finish. There is no dead space in the tank design to ensure good liquid flow and hygiene requirements.
2. There should be a platform for easy access to the filling machine for switching;
3. It can shield one filling head or capping head without affecting the operation of other filling heads;
4. The stainless steel soft connection pipe of the oil inlet pipe can be quickly disassembled and conveniently cleaned;
5. The filling valve and its components are made of high-quality stainless steel, with high smoothness, easy discharge and barrier free laminar flow. The parts in contact with the product in the filling machine are all copper free parts;
6. The equipment door is a stainless steel door frame, embedded with 12mm tempered glass with membrane in the middle. The equipment door is equipped with a door switch. After the door is opened, the equipment automatically stops, and the filling continues after reset and start;
